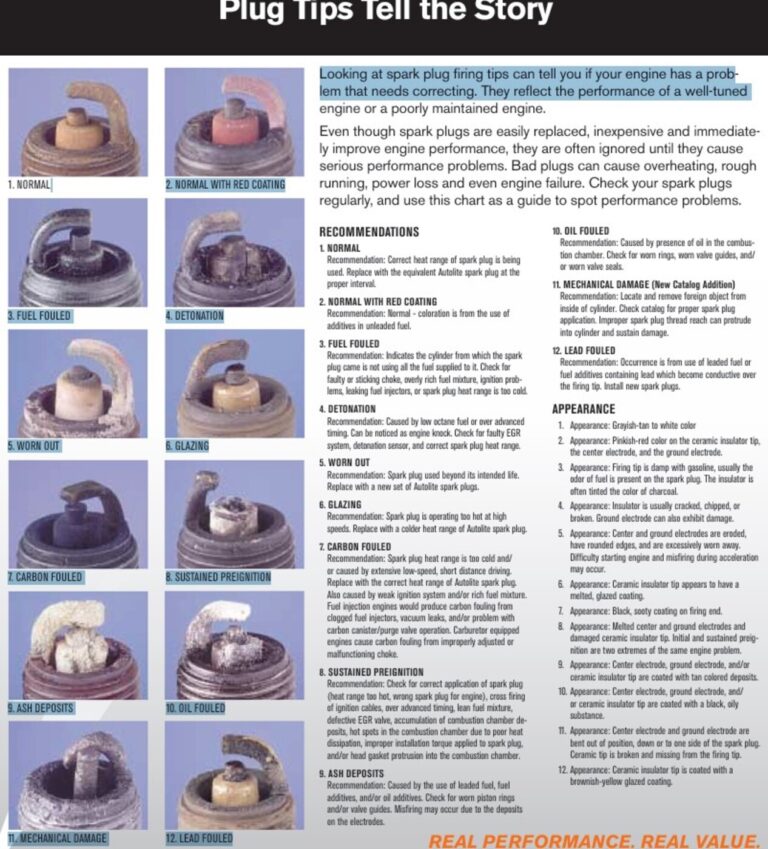

The condition of an engine spark plug can provide valuable insights into the performance and health of a car engine. Being able to “read” a spark plug can be a valuable tuning aid. By examining the insulator firing nose color, an experienced engine tuner can determine a great deal about the engine’s overall operating condition.
In general, a light tan/gray color tells you that the spark plug is operating at optimum temperature and that the engine is in good condition. Dark coloring, such as heavy black wet or dry deposits, can indicate an overly rich condition, too cold a heat range spark plug, a possible vacuum leak, low compression, overly retarded timing or too large a plug gap.
If the deposits are wet, it can be an indication of a breached head gasket, poor oil control from ring or valvetrain problems or an extremely rich condition—depending on the nature of the liquid present at the firing tip.

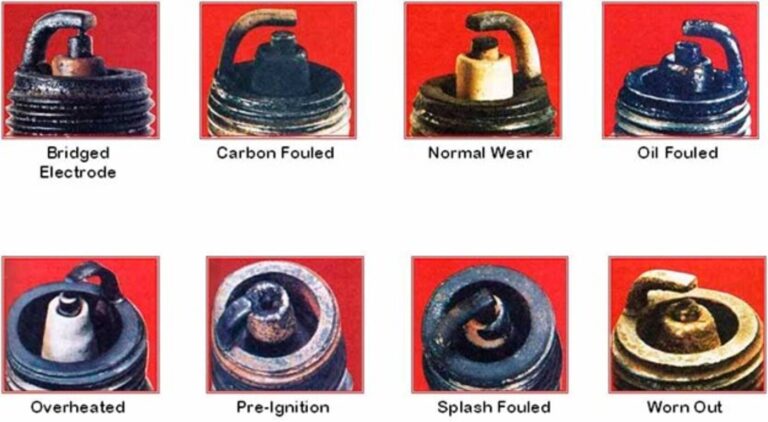

Here are some key aspects that the condition of a spark plug can reveal:
Air-Fuel Mixture:
The appearance of the electrode and insulator of the engine spark plug can indicate whether the engine is running too rich (too much fuel) or too lean (too little fuel).
- Black, sooty deposits on the spark plug typically indicate a rich air-fuel mixture, which may be caused by issues such as a faulty fuel injector, carburetor, or oxygen sensor.
- White or light gray deposits on the spark plug may indicate a lean air-fuel mixture, which could be caused by issues such as a vacuum leak, dirty air filter, or malfunctioning fuel pump.
Ignition System Performance:
The condition of the engine spark plug electrodes and insulator can also reveal how well the ignition system is functioning.
- If the electrodes are worn, eroded, or coated in carbon deposits, it can indicate issues such as improper spark plug gap, worn ignition coils, or ignition timing problems.
- Cracked or damaged insulators may suggest overheating or pre-ignition problems, which could be caused by factors such as incorrect spark plug heat range, excessive engine load, or poor fuel quality.
Engine Condition:
Examining the appearance of the engine spark plug can provide clues about the overall condition of the engine.
- Excessive oil deposits on the spark plug may indicate worn piston rings, valve seals, or valve guides, leading to oil consumption and fouled spark plugs.
- Physical damage to the spark plug, such as chipping or breakage, may suggest issues such as detonation, pre-ignition, or mechanical damage within the engine.
Fuel Quality and Additives:
The color and appearance of deposits on the engine spark plug can also be influenced by the quality of fuel used and the presence of fuel additives.
- Some fuel additives may leave residues on the spark plug electrodes and insulator, affecting performance and combustion efficiency.
- Poor-quality or contaminated fuel can lead to abnormal spark plug deposits and combustion issues, impacting engine performance and reliability.
Maintenance Interval:
Regularly inspecting and replacing engine spark plugs as part of routine maintenance can help prevent potential engine problems and ensure optimal performance. The condition of the spark plugs can also indicate whether they have been in service for too long and are due for replacement.
Finally
Overall, examining the condition of the engine spark plugs can provide valuable diagnostic information about various aspects of engine performance, fuel delivery, ignition system health, and overall engine condition. It is an essential part of troubleshooting and maintaining a car engine for optimal performance and reliability.
