A car’s weight distribution is a critical factor that significantly influences its handling, performance, and overall stability. In a vehicle which relies on gravity in some way, weight distribution directly affects a variety of vehicle characteristics, including handling, acceleration, traction, and component life.
Why Do You Need Car Weight Distribution?
A vehicle is only as good as its connection to the road. A car with cheap, poor-quality tires that do not grip, will be easily outperformed by an identical vehicle with high quality tires. It is the same, although much more extreme, when a vehicle is being driven on snow and ice – the grip or traction is everything.
If you are interested in performance motor vehicles and shows, you may have noticed the terms 40/60 or 50/50 in relation to car weight distribution. Now, you may be aware that these indicate the percentage of the vehicles weight over the front and rear wheels, but are you aware of how different set-ups affect a vehicle’s handling?
Using a pencil to demonstrate the proper car’s weight distribution and balance with the front and read (with the eraser) perfectly level.
Here Are Some of The Basics of Vehicle Physics
As a vehicle is braking into a corner, there is less weight over the rear wheels (all the weight has shifted forward). This has the potential of causing the rear end to lose traction. This reduces the effectiveness of the rear brakes (it cannot brake if it cannot grip the road) and could cause the rear of the vehicle to slide outward during cornering.
Using the pencil example when a car brakes the front of the car lowers and the rear (with eraser) raises losing traction at the rear of the car.
Conversely, as a car accelerates, the weight travels to the rear of the vehicle, reducing the grip of the wheels in the front. This will reduce the vehicle’s ability to steer as it accelerates out of a corner, or completely remove its ability to accelerate (in the case of a front wheel drive vehicle).
Using the pencil to demonstrate a car under acceleration lifting the front of the car and lowering the rear of the car (with eraser) which limits steering ability due to weight transfer to the rear.
This Is Where Proper Car Weight Distribution Comes In
A vehicle that has a weight distribution biased towards the rear of the vehicle (40/60) can brake later and harder into corners. This is because as the vehicle brakes, the weight moves towards the front of the vehicle and the vehicle gets closer to a 50/50 weight distribution. All the tires now have an equal grip on the ground and can brake evenly. This is why most ‘performance’ cars are rear-engine, as it is the heaviest part of a car.
However, when a vehicle like this begins to accelerate out of the corner, the weight will bias even more to the rear, allowing the vehicle to accelerate harder (more weight over the rear wheels) but leaves less grip for the wheels that steer. This is not an issue for vehicles that only need to travel in a straight line; drag cars for instance, put much of the weight over the rear wheels so that they have the most traction off the line.
The positive and negative benefits of the different kinds of car weight distribution are heavily contested between experts. The set-up of a vehicle is largely dependent on the kind of driving the vehicle will be doing and the driving style of the driver. A drift vehicle is set up very differently to a Formula 1 vehicle, and each is very different to a ‘normal’ road car.
Reasons Why Car Weight Distribution Is Important:
Traction and Grip
Proper weight distribution ensures that each tire maintains optimal contact with the road surface. This is crucial for maximizing traction and grip, especially during acceleration, braking, and cornering.
Balanced Handling
A balanced weight distribution contributes to predictable and neutral handling. It helps prevent oversteer (rear of the car losing traction) or understeer (front of the car losing traction), promoting stability and control during various driving maneuvers.
Cornering Stability
A well-distributed weight allows the car to navigate corners more effectively. It minimizes body roll and promotes a balanced load on each tire, enhancing stability and control during turns.
Braking Performance
Proper weight distribution ensures that braking forces are evenly distributed among all four tires. This contributes to effective and balanced braking performance, reducing the risk of skidding or loss of control.
Acceleration Efficiency
Balanced weight distribution helps distribute the load evenly during acceleration. This is particularly important in rear-wheel-drive cars to prevent excessive weight transfer to the rear wheels, which could lead to wheel spin.
Tire Wear
Uneven weight distribution can result in uneven tire wear. If one set of tires is bearing a disproportionate load, they may wear out faster than others. Proper weight distribution promotes more even tire wear, increasing the lifespan of the tires.
Dynamic Stability
Weight distribution influences a car’s dynamic stability, especially during sudden maneuvers or emergency situations. A well-balanced car is less prone to unpredictable behavior and maintains stability more effectively.
Ride Comfort
Proper weight distribution contributes to a smoother ride. It helps prevent excessive pitching or bouncing, enhancing comfort for passengers.
Off-Camber Situations
In situations where the road surface is uneven or off-camber, a balanced weight distribution is crucial for maintaining tire contact and stability.
Performance Characteristics
For high-performance vehicles, achieving an optimal weight distribution is a key consideration. It can impact the car’s acceleration, top speed, and overall performance on the track.
Safety
Proper weight distribution is a safety consideration. It contributes to a car’s ability to respond predictably to driver inputs, reducing the risk of accidents or loss of control.
Vehicle Dynamics
Weight distribution is a fundamental aspect of a vehicle’s dynamics. It affects how the car responds to changes in direction, load, and road conditions.
Finally

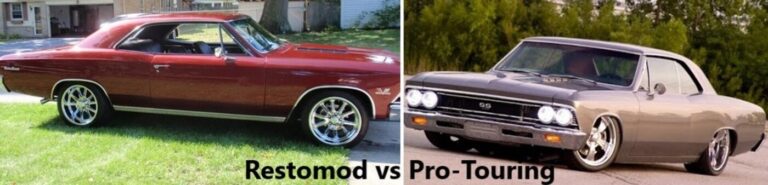

The main points are that the weight distribution throughout the car will certainly influence how the car handles (and remember that adding weight to the tire will improve its grip, up to a point), but anything else which disturbs the tire’s ability to grip will also have an effect. Automobile manufacturers carefully engineer and design cars to achieve an optimal weight distribution for the intended purpose of the vehicle. Factors such as the placement of the engine, drivetrain configuration, and overall chassis design are all considered to achieve the desired weight distribution characteristics. Depending on your plan for your classic car you can make major changes to the handling by converting the suspension system to a more modern technology (pro-touring), or for a less costly approach is minor suspension adjustments and relocating weight in the car to even out the weight load (i.e., the battery, spare tire, seats, etc.).
