Painting or coating the metal surfaces of automotive parts is vital to protecting them from corrosion and other environmental damage. The most common methods for doing this are powder coating and enamel paint. Powder coating and baked enamel are two distinct paint processes used in the automotive industry for applying finishes to various components during car restoration. Both powder coat and enamel paint have their pros and cons, so it can be tough to decide which one is right for you.
Here are the key differences between powder coating and baked enamel paint processes:

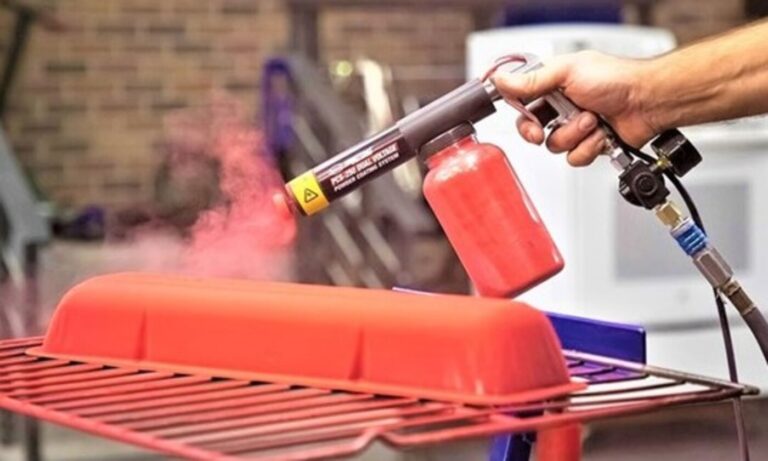

Powder Coating Paint Processes
Application Process
Powder coating involves applying a dry powder to the surface of the part. The powder consists of a mixture of finely ground particles of pigment and resin. Unlike conventional liquid paint, which is delivered via an evaporating solvent, powder coating is typically applied electrostatically and then cured under approximately 450-degree heat or with ultraviolet light.
Adhesion and Durability
The powder adheres electrostatically to the surface and is then cured under heat. This creates a strong bond that is highly resistant to chipping, cracking, and peeling.
Environmentally Friendly
Powder coating is considered more environmentally friendly than traditional liquid coatings. The process produces less waste and does not involve solvents that release volatile organic compounds (VOCs).
Color Options
Powder coating provides a wide range of color options and finishes, including matte, glossy, and textured surfaces.
Uniform Finish
The curing process ensures a uniform and consistent finish, even on complex-shaped parts. Powder coating is known for providing a smooth and even appearance.
Heat Resistance:
Powder coating exhibits good resistance to heat and is often used on components that may be subjected to high temperatures.

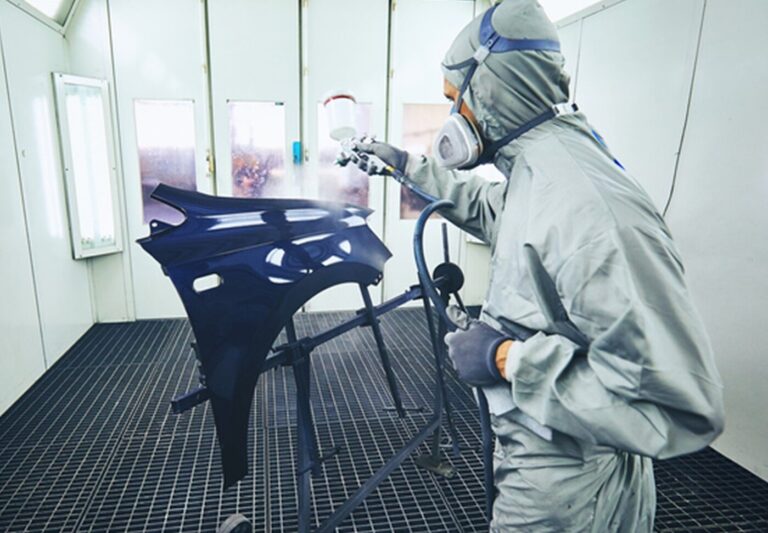

Baked Enamel Paint Processes
Application Process
Baked enamel involves applying a liquid enamel or paint to the surface of the part. The part is then baked to cure and harden the coating. The finish is heated, or baked, at temperatures that reach at least 150 degrees for the oil or synthetic resin to bind and develop. The result is a dense finish that defends against the traditional wear and tear we see with metal.
Adhesion and Durability
Baked enamel creates a durable finish, but the adhesion may not be as strong as powder coating. The finish is resistant to normal wear and tear but may not be as chip resistant as powder coating.
Environmental Considerations
Baked enamel coatings often contain solvents and can release VOCs during the curing process. This may have environmental implications and require proper ventilation.
Color Options
Baked enamel also offers a variety of color options and finishes, but the range may not be as extensive as with powder coating.
Application Flexibility
Baked enamel can be applied using various methods, including spray painting. This flexibility allows for easier touch-ups and repairs.
Cost
In some cases, baked enamel may be a more cost-effective option compared to powder coating, especially for smaller projects or those with budget constraints.
Paint Processes Considerations
Purpose and Application: The choice between powder coating and baked enamel often depends on the specific application, the type of part being coated, and the desired finish.
Appearance and Performance: Powder coating tends to offer a more consistent and durable finish, making it suitable for high-performance and high-exposure components. Baked enamel is still durable but may be chosen for different aesthetic preferences or specific applications.
Cost and Environment: Powder coating may have a higher upfront cost but can be more cost-effective over the long term due to its durability. Baked enamel may be more budget-friendly initially but could incur higher maintenance costs over time.
Finally
Both powder coating and baked enamel paint processes have their advantages and are widely used in the automotive industry, including in car restoration projects. The choice between the two depends on factors such as the specific components being coated, performance requirements, budget considerations, and environmental preferences. The final point here is, as always, the coatings will only be as good as the surface preparation made prior to applying the material; so, take your time to do the proper foundation.
