Finding the top dead center (TDC) of a car engine is an essential step for various maintenance and repair tasks, such as setting the ignition timing or adjusting the valve clearance. Here is a step-by-step guide to finding TDC.
Top Dead Center

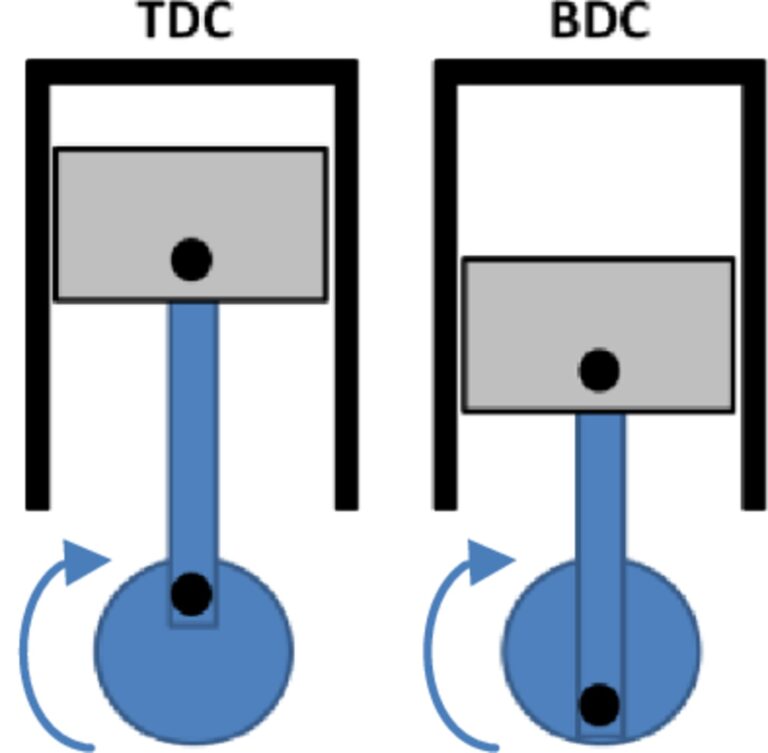

Top Dead Centre is traditionally the position of an internal combustion engine’s piston when it is at the very top of its stroke. BDC – Bottom Dead Centre is the opposite, when the piston is at the very bottom of its stroke.
Tools Needed
Steps to Find Top Dead Center (TDC)
1.Safety First
- Disconnect the Battery: To avoid accidental starts, disconnect the negative battery terminal.
- Remove the Spark Plugs: This makes it easier to turn the engine by hand and removes compression.
- Locate the Timing Marks
- Timing Marks: Identify the timing marks on the crankshaft pulley and the timing cover. The marks usually include a reference for TDC.
- Rotate the Engine
- Turn the Crankshaft: Using a ratchet and socket, turn the crankshaft bolt in the normal direction of engine rotation (typically clockwise).
- Watch the Piston Movement: Insert a long, thin rod or screwdriver into the spark plug hole of the number one cylinder (ensure it’s non-marring to avoid damaging the piston). Feel the piston moving up as you rotate the crankshaft.
- Find the Compression Stroke
- Check the Valves: For engines with overhead valves, remove the valve cover. Observe the rocker arms or lifters on the number one cylinder to ensure both valves are closed. This indicates the compression stroke.
- Feel for Pressure: Place your thumb over the spark plug hole of the number one cylinder. If you feel pressure building as you rotate the crankshaft, the piston is on the compression stroke.
- Locate TDC
- Continue Rotating: Slowly continue to rotate the crankshaft while watching the piston rise. When the piston reaches its highest point and begins to descend, that is TDC.
- Use a TDC Indicator: For more precision, use a TDC indicator tool. Install it in the spark plug hole and rotate the crankshaft until the tool indicates TDC.
- Align the Timing Marks
- Confirm TDC with Timing Marks: Once you have determined TDC by piston position, check the alignment of the timing marks on the crankshaft pulley and the timing cover. They should align perfectly with the TDC mark.
- Mark the Position
- Mark the Crankshaft: Use a chalk or marker to mark the crankshaft pulley and timing cover at the TDC point. This makes it easier to find TDC in the future.
- Reassemble
- Replace Spark Plugs: Reinstall the spark plugs and reconnect any components removed during the process.
- Reconnect the Battery: Reconnect the negative battery terminal.
Additional Tips
- Consult Service Manual: Always refer to the vehicle’s service manual for specific details and diagrams related to finding TDC for your engine.
- Double-Check: After aligning the timing marks, rotate the engine slightly back and forth to ensure you have accurately found TDC.
- Timing Light: For engines with adjustable timing, use a timing light after finding TDC to ensure the ignition timing is set correctly.
Finally
By following these steps, you can accurately find the top dead center of your car’s engine, which is crucial for various maintenance and tuning procedures.
