Internal Combustion engines are only about 30% efficient, that is, only 30% of the energy put in as fuel is converted into mechanical energy used to propel your vehicle. That leaves out 70% of the energy to be wasted as heat & noise and that is a lot of energy to dissipate. The best of the best engines has an efficiency of 49% to date. That wasted heat can quickly become a problem for the engine if not dealt with accordingly and that is why it is important to understand car engine cooling methods. The engine itself works at its maximum efficiency within a narrow band of temperatures. Engineers have designed ways to evacuate that heat from the engine, through 1. air cooling, 2. oil cooling and 3. water cooling /Liquid cooling.
Air cooling, water cooling, and oil cooling are three distinct methods used to regulate the temperature of a car engine. Each cooling method has its advantages and disadvantages.
Here is an overview of the differences between these cooling methods:
Air Cooling Methods
- How it Works: Air cooling relies on the flow of air over the engine’s components to dissipate heat. Engines using this method typically have fins on the cylinder heads and cylinders that increase the surface area for heat dissipation. A fan, often attached to the engine’s crankshaft, can enhance cooling by drawing air over these fins.
- Advantages
- Simplicity: Air-cooled engines are generally simpler in design and have fewer components.
- Reduced Maintenance: They often require less maintenance because there is no coolant to change or water pump to maintain.
- Lighter Weight: Air-cooled engines tend to be lighter because they lack the weight of a liquid cooling system.
- Disadvantages
- Limited Cooling Capacity: Air cooling may struggle to keep the engine cool under heavy loads or in hot weather, limiting the engine’s performance.
- Noise: Air-cooled engines can be noisier due to the fan.
- Limited Temperature Control: They provide limited control over the engine’s operating temperature.
- Advantages
Water Cooling Methods (Liquid Cooling)

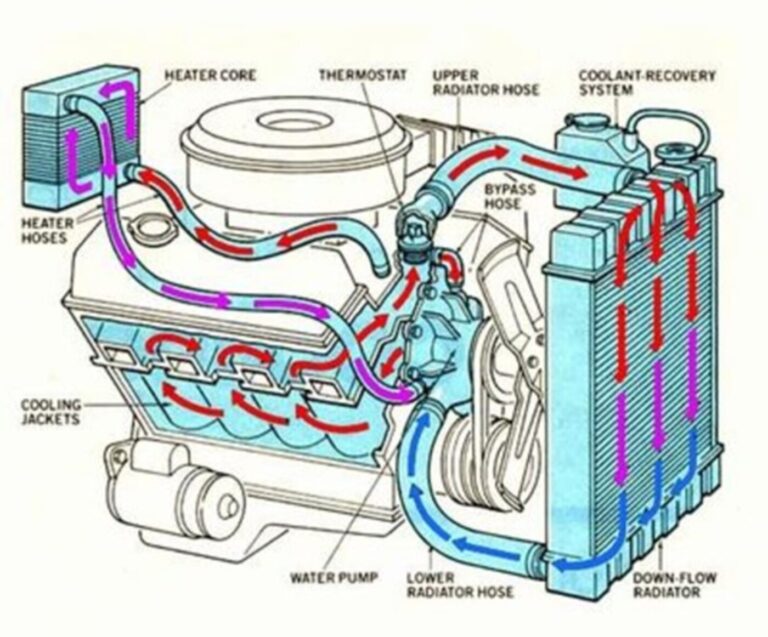

- How it Works: Water cooling uses a liquid coolant (typically a mixture of water and antifreeze) to absorb and transfer heat away from the engine. The coolant circulates through a network of passages in the engine block and cylinder head and then passes through a radiator, where it dissipates heat into the surrounding air. A water pump ensures the continuous flow of coolant.
- Advantages
- Efficient Cooling: Water cooling is highly efficient and can maintain a consistent engine temperature even under heavy loads.
- Improved Performance: Engines can operate at higher temperatures, which can enhance performance and fuel efficiency.
- Quieter Operation: Water-cooled engines are often quieter because they lack the noise associated with air cooling.
- Disadvantages
- Complexity: Liquid cooling systems are more complex and have more components, including the radiator, water pump, hoses, and thermostat.
- Maintenance: They require periodic coolant changes and maintenance of the cooling system components.
- Weight: Liquid cooling systems can add weight to the vehicle due to the radiator and other components.
- Advantages
Oil Cooling Methods

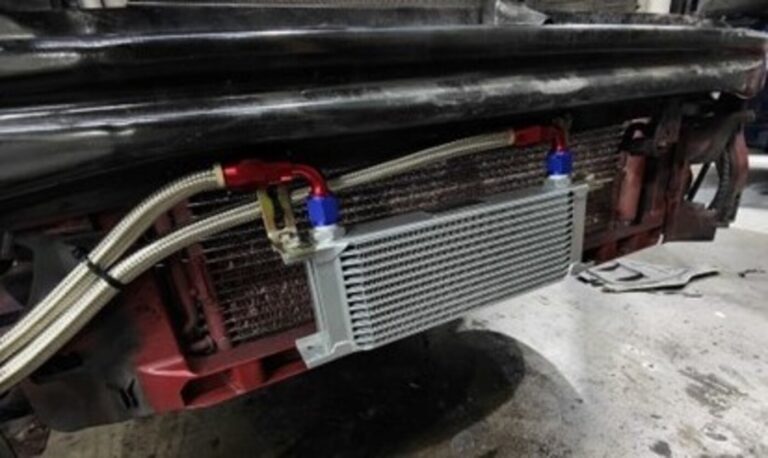

- How it Works: Oil cooling involves using engine oil to regulate temperature. Some engines have an oil cooler, which is a heat exchanger that cools the engine oil. As the oil circulates through the engine, it carries away heat and passes it through the oil cooler, where it dissipates.
- Advantages
- Effective: Oil cooling can effectively manage engine temperature, especially in high-performance or heavy-duty applications.
- Simplified Design: It’s a simpler system compared to liquid cooling and doesn’t require a separate coolant.
- Disadvantages
- Limited Cooling: Oil cooling alone may not provide sufficient cooling in extremely hot conditions or under heavy loads.
- Maintenance: Oil coolers require proper maintenance, including cleaning and, in some cases, oil changes.
- Temperature Control: It may not provide as precise temperature control as liquid cooling.
- Advantages
Finally
In practice, many vehicles use a combination of these cooling methods. For example, a car may have liquid cooling for the engine and oil cooling for specific components like the transmission or turbocharger. The choice of cooling method depends on factors like the engine’s design, intended use, and efficiency requirements.
Temperature plays a critical role in maintaining an engine’s optimal performance. Improper balance between hot and cold temperatures can affect the engine in many ways. Without proper regulation, the engine will not be at its total capacity and will experience severe issues, like overheating.
