How to Repair Surface Rust & Paint on a Classic Car
As long as vehicle body panels are made from steel, they’re going to rust. Also depending on the make and year some classic cars rust easier than others. When searching for a vintage car some research as to the rust areas is very helpful during the inspection process. For those of us who like to drive our classic cars regularly then some tips on preventing surface rust on the body panels will be helpful.
Sure, you can lower your risk of rust by applying paint protection film to chip-prone areas like the front edge of the hood, and by frequently washing off and waxing your vehicle regularly.
Classic cars are not fans of water so keeping full washes to a minimum will help prolong the life of your paint. Dry cleaning with detailing spray and a micro-fiber towel is a better way to keep your vintage car clean. But even then, you are still going to get surface rust spots. If you ignore them, they will spread and turn your sheet metal into Swiss cheese in no time. However, if you deal with surface rust early, you can stop it from spreading and squeeze a few extra years out of your vehicle.
Body Touch Ups

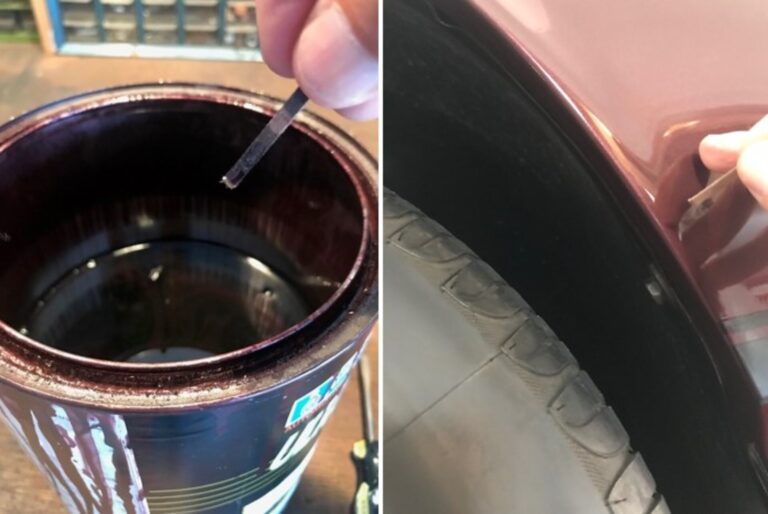

Surface rust can be prevented by addressing classic car body scratches and dings before surface rust takes hold which is relatively easy as most vintage cars do not see much water/rain. A method of touch up to minimize paint blotches in making repairs is to use a match-stick to apply the paint which keeps the amount of paint being applied to a minimum.
Rip a cardboard match out of the pack and dip the torn edge into the paint. The dab the paint onto the area of the ding. A few applications may be required depending on the depth of the damage.
Buy Paint and Supplies
Surface rust repair is not hard, but it is time-consuming (mostly waiting for primer and paint to dry between steps). Plan to spend about $100 on supplies like sandpaper, primer, masking tape and poly sheeting, a tack rag, polishing compound and touch-up paint and clear coat. Choose a calm, overcast day and block out the full day to fix the most common surface rust spots on the hood and doors.
You can buy automotive touch-up paint in pints and quarts to use in a spray gun, in aerosol cans, or in roller ball applicators. Even if you know how to use a spray gun, mixing automotive paint with a reducer to match the temperature and humidity conditions can be mighty tricky. We do not recommend it. Instead, buy aerosol cans for larger repairs and roller ball applicators to fix scratches.
In order to buy the perfect color match for your vehicle’s factory paint, you will first need to find the classic car manufacturer’s paint code. It can be in a variety of places on the body, in the engine compartment or trunk, or other places. Use either of these online resources to find instructions on how to locate your paint code: automotivetouchup.com or duplicolor.com.
Hopefully if the vintage car was restored at some point the shop provided extra paint that will match the current color on the car. If not, try to reach out to them as they may still have some in their inventory.
Most late-model vehicles were painted with base coat/clear coat paint. The base coat contains just the pigment and binding resins-the clear coat is just the gloss. You will need equal amounts of both. You will also need an epoxy self-etching primer to bite into the bare metal and a lacquer primer to hold the paint. We used paint, primer, and sanding supplies from automotivetouchup.com for this repair. The Dupli-Color brand is available at most retail auto parts stores, car dealers and online retailers. Or, you can buy automotive paint locally from a professional auto body supplier.
Next, buy 40-, 600- and 1,000-grit sandpaper, a sanding block, grease and wax remover, poly sheeting, painter’s tape, a tack rag and a micro-fiber cloth.
Mask The Vehicle

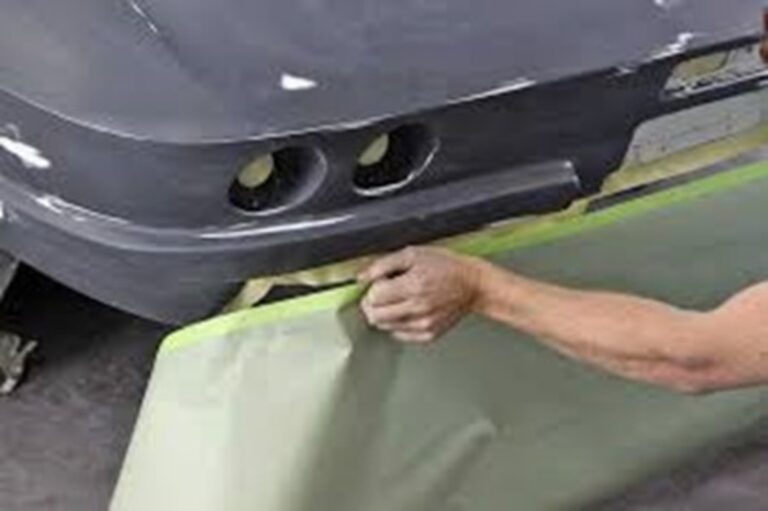

Photo 1: Mask off the repair area
Tape the leading edge of poly sheeting a few feet away from the repair so you will have room to blend the touch-up paint into the good areas.
Protect the entire vehicle from paint overspray with poly sheeting. If you are painting the hood, spread poly sheeting over the engine and fenders. In door areas, cut poly sheeting to fit the door opening and tape it to the jamb. The final masking must be a foot or two away from the repair area (Photo 1).
Sand, feather, and clean

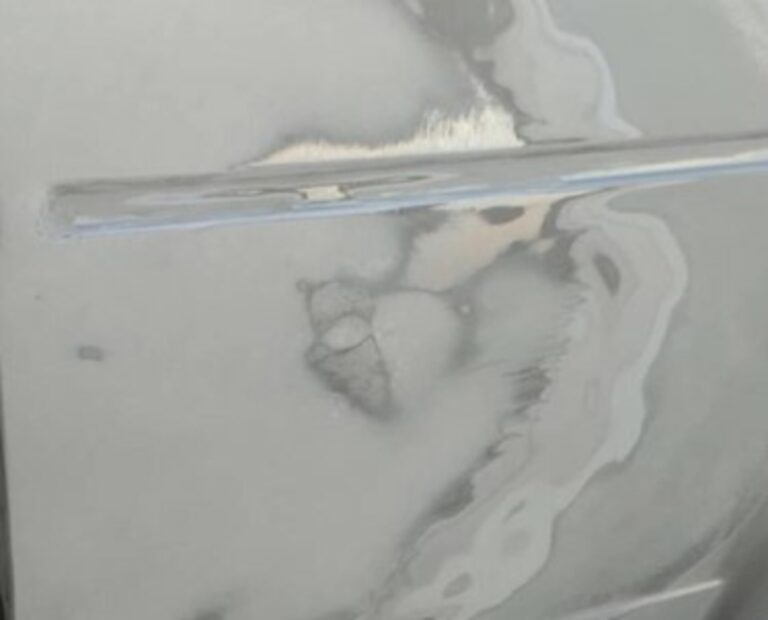

Photo 2: Remove the rust
Sand through the rust spots, down to bare metal. Then enlarge the sanded area so you will have space to feather the edges. Switch to 120-grit sandpaper to feather the edges of the repair area. Complete the feathering with 220 grit.
Crack off any blistered paint with a scraper. Then sand the rust using 40-grit sandpaper. Then feather the paint edges. Use a tack rag to remove particles from the unmasked area. Then clean the sanded area and apply the paint manufacturer’s prep solvent.
If the surface rust has created pits in the metal, you can fill them now with body filler or wait until the epoxy primer dries and apply multiple coats of filler primer.
Prime The Surface

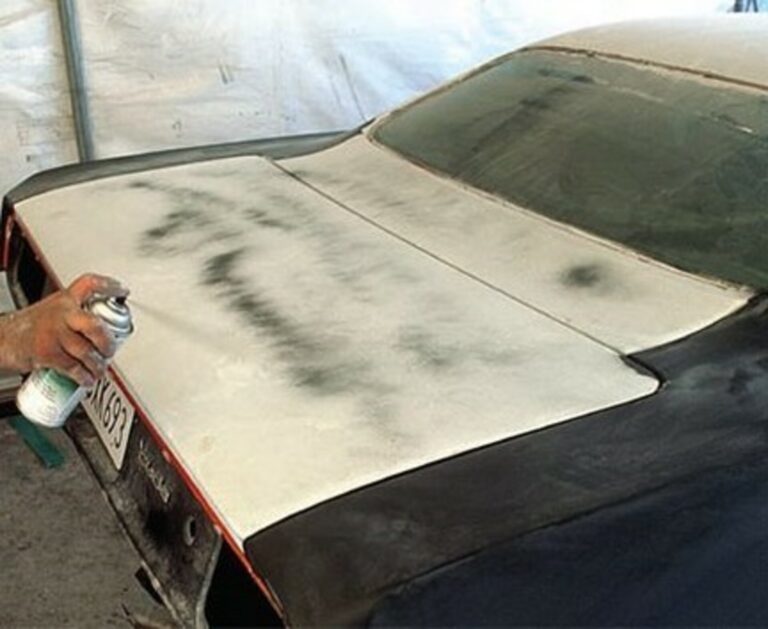

Apply epoxy primer, then filler primer
Spray the filler primer in heavier coats to cover the entire repair area. Move the can away from the surface slightly and blend it into the surrounding painted area.
Self-etching epoxy primer provides a strong bond to bare metal, so use it as your first coat. Spray two to three medium coats, allowing the recommended wait time listed on the label (usually 15 minutes) between coats. Wait a full hour for the epoxy to dry to the touch (longer if it is humid outside). Sand the epoxy primer with wet 1,000-grit sandpaper. Wash with clear water and let dry. Wipe the dried epoxy primer with a lint-free cloth and apply two to three heavier coats of lacquer filler primer, allowing drying time between each coat. Let the lacquer primer dry until it is dry to the touch—at least one hour—before sanding.
Sand drips and sags with 320-grit sandpaper. Then final-sand the entire repair area.
Spray The Base Coat
Apply the colored base coat
Start at the bottom of the repair and apply the color coat in left-to-right rows, overlapping each pass by about one-third. Build the color slowly into the repair and surrounding areas in two to three coats, allowing about 10 to 15 minutes between coats.
Holding the spray can about 12 in. away from the surface, spray the repaired area. The slower you build the color coat, the better it will look under the clear coat. Allow the base coat to dry, until it is dry to the touch, at least 60 minutes. Do not sand the base coat (especially metallic colors) unless you have created sags. In that case, sand lightly and then respray the touched-up areas.
Add The Clear Coat

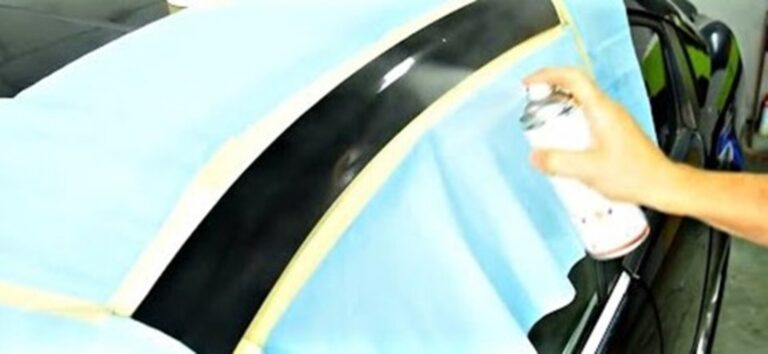

Spray on the clear coat
Apply several coats of clear coat, allowing the recommended drying time between coats. Gradually work the clear coat into the surrounding painted areas to achieve a smooth blend line.
This is the hardest part because all clear coats run easily and that will ruin the look of your paint job. If you create a run in the clear coat, you will have to let it dry for at least 48 hours before attempting to fix it with fine-grit sandpaper and polishing compound. Then you will have to respray the sanded area. So practice spraying on a scrap piece of cardboard to get a feel for the nozzle and the speed of application.
Clean the painted area one last time with a tack rag. Then apply the first layer of clear coat so it looks wet.
Let the clear coat dry for several hours before driving the vehicle and at least 48 hours before buffing.
Buff The Repair
Using an old cotton T-shirt or microfiber cloth and buffing compound, hand-buff the repaired area. Do not use a polishing machine for this step. Wait at least 30 days before waxing.
